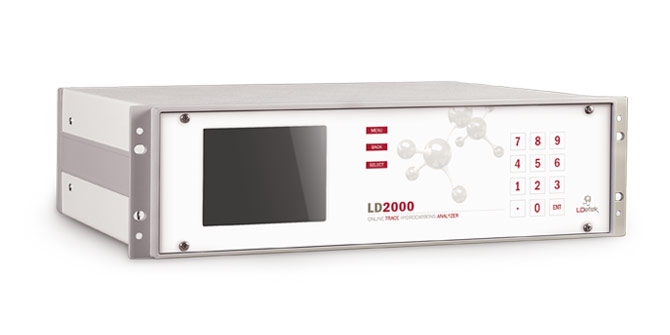

LD2000

Online trace Total Hydrocarbon analyzer

The LD2000 is an easy to use instrument that offers the ideal solution for the total hydrocarbon measurements. Its compact and robust design perfectly fit on any industrial installation. The LDetek FID and electronic platform bring the performances required by the market.

THE LD2000 SPECIFICATION

DETECTOR TYPE
  • Flame Ionisation Detector
RANGE
  • 0 – 10 ppm>
  • 0 – 100 ppm
  • 0 – 1000 ppm
  • Other range possible
REPEATABILITY
  • < 1% full scale
ACCURACY
  • Better than ± 1% full scale
STANDARD FEATURES
  • Manual or autoranging (user selectable)
  • Microprocessor controlled
  • 5.6'' TFT intelligent LCD module with Touch Screen
  • Self diagnosis system with auto-resolve alarm
  • 4-20 mA isolated output
  • Alarm Historic
  • Digital ouputs for remote monitoring: (all dry relay contacts)
    • System status (1 output)
    • Range in use (3 output)
    • Calibration in use (1 output)
OPTIONS
  • Serial port: RS-232 / 422 / 485 / Profibus
  • 2 alarm outputs (user programmable set point)
GAS CONNECTIONS
  • Sample: 1/8'' compression fittings
  • Vent: 1/8'' compression fitting
CALIBRATION GAS
  • Zero: LDP1000 purified gas (Getter)
  • Span: 80%-90% of full scale of methane
SAMPLE FLOW REQUIREMENTS
  • 50 to 200 sccm
Air FLOW REQUIREMENTS
  • 200 to 600 sccm
Fuel FLOW REQUIREMENTS
  • 40 to 150 sccm
Recommended maximum operating pressure
  • 40 PSIG)
Recommended minimum operating pressure
  • 10 PSIG
OPERATING TEMPERATURE
  • 10 °C to 45 °C
SUPPLY
  • 115 VAC, 50 – 60 Hz or 220 VAC, 50 – 60 Hz
POWER CONSUMPTION
  • Maximum 50 watts
DRIFT
  • < ± 1% over 24 hours
WEIGHT
  • 27 lbs (12 kg)

THE LD2000 ORDERING INFORMATIONS

-x
  • Ar: Argon
  • H: Helium
  • O: Oxygen
  • N: Nitrogen
  • A: Air

-xxx Operating Voltage
  • 120 : 120 volts
  • 220 : 220 volts
-X A: Alarm option
-XXX Serial communication
  • RS2: RS-232
  • RS4: RS-485
  • PFB: Profibus

LD2000 Application Notes

LD2000 ONLINE TRACE TOTAL HYDROCARBON ANALYZER

LD2000 Design Report 1,2 Mo
